Fast Rich Client Rails Development with Webpack and the ES6 Transpiler

react on railsOctober 03, 2014Dotby Justin Gordon

There has to be a better way to incorporate the JavaScript ecosystem into Rails.


Update October, 21 2015: We're about to release 1.0 of the react_onrails gem! It will include a generator which will make the setup of this process super easy!

Update September, 28 2015: Be sure to see https://github.com/shakacode/react_on_rails/ and the gem react_onrails. My team is writing a gem to make the process of integrating react and webpack with Rails much easier. This also supports server rendering of react components, as well as advanced react techniques such as REDUX.

Update August 19, 2015: I'm working on revising this article to reflect much progress in this area since the original publication of this article in 2014. I highly recommend seeing the README at https://github.com/justin808/react-webpack-rails-tutorial and the pull requests (both open and closed) of what's been incorporated since this article was first published.

Have you:

  1. Wondered if there's a better way to utilize modern JavaScript client frameworks the context of an existing Ruby on Rails project?
  2. Gotten confused about how to integrate JavaScript libraries and examples that are packaged up into proper "modules"?
  3. Discovered the drawbacks of having all applications JavaScript littering the global name-space.
  4. Heard about ES6 (aka Harmony), the next version of JavaScript and how the cool kids in Silicon Valley (Facebook, Instagram, Square, etc.) are using ES6 syntax?

How would you like to achieve, within a Rails project:

  1. The ability to prototype a rich UI, seeing changes in JS and CSS/Sass code almost instantly after hitting save, without the page reloading.
  2. First class citizenship for utilizing the Node ecosystem, by specifying dependencies in package.json, running npm install, and then simply requiring modules in JavaScript files.
  3. Seamless integration of Node based JavaScript assets for the Rails Asset Pipeline, thus not circumventing the asset pipeline, but co-existing with it and leveraging it.
  4. The ability to plug the node client side ecosystem into an existing Rails project seamlessly.
  5. Utilization of many JavaScript tools, such as the React JSX tranpiler and ES6 transpiler.

This article will show you how you can utilize Webpack in your Rails development process to achieve these goals!

First, I'm going to tell you a brief story of how I came to the realization that there had to be a better way to incorporate JavaScript ecosystem into Rails.

What's Wrong with Copying and Pasting Tons of JavaScript into /vendor/assets/javascripts?

Imagine doing Ruby on Rails projects without Bundler? Oh, the horror! Well that's what copying tidbits of JavaScript into /vendor/assets/javascripts is like! It's actually a bit worse than that, as many of these JavaScript libraries depend on either AMD (aka require.js) or CommonJs module syntax being available. (For a great explanation of how these module systems work, see Writing Modular JavaScript With AMD, CommonJS & ES Harmony.) This would be much more of a problem in the Rails community were it not for the fact that many popular JavaScript libraries are packaged into gems, such as the jquery-rails gem. You might think that works fine, until you start to encounter JavaScript modules that lacked Gems. For example, you may want to start leveraging the many npm packaged react components, such as react-bootstrap, or you may desire to leverage the JavaScript toolchain, such as the JSX and ES6 transpilers (es6-transpiler and es6-module-transpiler).

Thankfully, this experience has broken me away from the JavaScript baby bottle of gemified JavaScript! You can now become a 1st class JavaScript citizen!


Motivation: React and ES6

My foray down the Node rabbit hole began with a desire to use the React framework, including its JSX transpiler. In a nutshell, the React library stands out as unique, innovative, and impressive. You can simply think about the client-side UI as a set of components that are recursively composed and which render based on set of data that flows in one direction, from the top level component to each of its children. For further details into the benefits of React, see my article React on Rails Tutorial. For purposes of this article, you can imagine substituting my example of using React with your favorite rich client JavaScript framework. I'd be thrilled if somebody would fork my project and create a version using EmberJs.

At first this mission of integrating React seemed easy, as there is a Ruby Gem, the react-rails gem, that provided a relatively painless mechanism of integrating react into a Rails project. This is definitely the simplest method. I've created a tutorial, React on Rails Tutorial, with a companion github repository, justin808/react-rails-tutorial, that walks you through using the react-rails gem with the Rails 4.2 scaffold generator. Then I wanted to plug in the react-bootstrap library. With no gem available, I considered manually copy-pasting the source to my /vendor/assets/javascripts directory, but that just seemed to smell for the following reasons:

  1. JavaScript has a mature system for managing dependencies (packages & modules): npm (and bower).
  2. Dependencies often depend on other dependencies, in both the Ruby and JavaScript worlds. Imagine managing Ruby dependencies by hand.
  3. JavaScript modules often depend on either CommonJs or RequireJs being available.

(Side note: in terms of Node, a module is a special case of package that JavaScript code can require(). For more info, see the npm faq and Stack Overflow).

Here's a good summary of other ways to handle the assets in a Rails app: Five Ways to Manage Front-End Assets in Rails. I briefly tried those techniques, plus the browserify-rails gem. However, they seemed to conflict with the react-rails gem, and if I didn't use that gem, I'd need a way to convert the jsx into js files. This led me to try the webpack module bundler.


Webpack

What's Webpack?

webpack takes modules with dependencies and generates static assets representing those modules.

Why did I try Webpack? It was recommended to me by Pete Hunt of the React team. Here's some solid reasons for "why Webpack":

  1. Leverages npm (and optionally bower) for package management.
  2. Supports whatever module syntax you prefer.
  3. Has loaders (think pipeline), including ES6 and JSX.
  4. Its Webpack Dev Server rocks for quick prototypes (Hot Module Replacement) of JS and CSS/Sass code.

A good place to get started with Webpack is Pete Hunt's webpack-howto.

I initially tried the webpack module bundler separate from Rails, as I wanted to see the "hot reloading" of react code in action. You can try this sample code: react-tutorial-hot. Hot module Replacement changes the JS code (and possibly the CSS) of the running code without any page refresh. Thus any data in the JS objects sticks around! This is way cooler than Live Reload, which refreshes the whole browser page.

Then I started using these features of Webpack:

  1. es6-loader, which incorporates both of the es6-transpiler and the es6-module-transpiler. For fun, try out the ES6 syntax with the ES6 Fiddle. Here's a great references on ES6 features.
  2. jsx-loader, which handles jsx files using es6.
  3. Trivial integration of any additional packages available via npm and the ability to use whichever module syntax is most convenient.

As Webpack generates a "bundle" that is not necessarily minified, it would seem that this could be incorporated into the Rails asset pipeline, and sure enough, it can be! This is well described in this article: Setting Up Webpack with Rails along with this example code to precompile with Webpack: Webpack In The Rails Asset Pipeline.

With the basic parts in place, I wanted achieve the following:

  1. Be able to prototype client side JS using Webpack Dev Server (with hot module replacement), while having this same code readily available in my Rails app. This involves having JavaScript, Sass, and Image files commonly available to both Rails and the Webpack Dev Server.
  2. Be able to easily deploy to Heroku.

My solution to the problem is shown in this github repo: justin808/react-webpack-rails-tutorial. This is based on my tutorial using the react-rails gem: Rails 4.2, React, completed tutorial. I will now describe this solution in detail.

Setup

You'll need to install Node.js following. I'm assuming you already have Ruby and Rails installed.

  1. Node.js: You can find the Node.js download file here. Note, some friends of mine recommended the Node.js installer rather than using Brew. I did not try Brew.

  2. Many articles recommend running the following command, so that you don't need to run node commands as sudo, thus changing the ownership of your /usr/local directory to yourself.

    sudo chown -R $USER /usr/local
  3. Your /package.json file describes all other other dependencies, and running npm install will install everything required.

Once I got this working, it felt like Santa Clause came to my app with the whole Node ecosystem!


Bundler and Node Package Manager

All Rails developers are familiar with gems and Bundler (bundle). The equivalent for Javascript are package.json files with Node Package Manager (npm) (see discussion in next point on why not Bower).

Both of these package manager systems take care of retreiving dependencies from reputable online sources. Using a package.json file is far superior to manually downloading dependencies and copying the /vendor/assets/ directory!


Why NPM and not Bower for JS Assets?

The most popular equivalants for JavaScript are Node Package Manager (npm) and Bower. For use with webpack, you'll want to prefer npm, per the reasons in the documentation:

In many cases modules from npm are better than the same module from bower. Bower mostly contain only concatenated/bundled files which are:

  • More difficult to handle for webpack
  • More difficult to optimize for webpack
  • Sometimes only useable without a module system

So prefer to use the CommonJs-style module and let webpack build it.

Webpack Plus Rails Solution Description

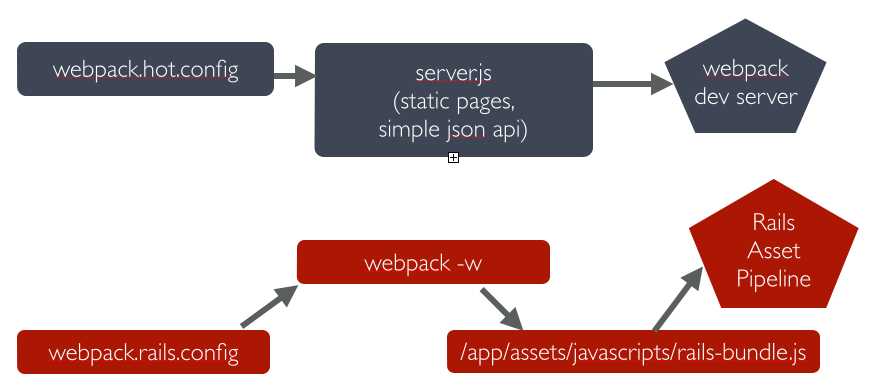

To integrate webpack with Rails, webpack is used in 2 ways:

  1. Webpack is used soley within the /webpack directory in conjunction with the Webpack Dev Server to provide a rapid tool for prototyping the client side Javascript. The file webpack.hot.config.js sets up the JS and CSS assets for the Webpack Dev Server.
  2. Webpack watches for changes and generates the rails-bundle.js file that bundles all the JavaScript referenced in the /webpack/assets/javascripts directory. The file webpack.rails.config.js converts the JSX files into JS files throught the JSX and ES6 transpilers.

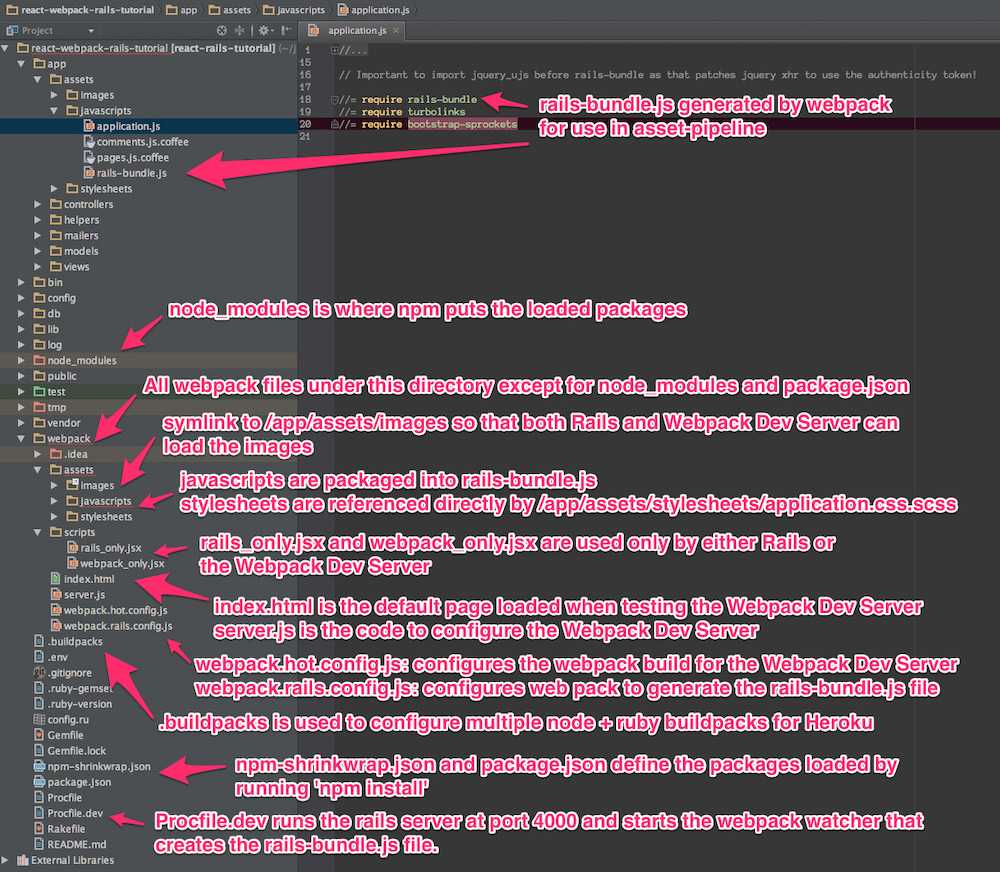

The following image describes the organization of integrating Webpack with Rails.

FileNotes and Description
/app/assets/javascripts/rails-bundle.jsOutput of webpack --config webpack.rails.config.js
/app/assets/javacripts/application.jsAdd rails-bundle so webpack output included in sprockets
/app/assets/javascriptsDo not include any files used by Webpack. Place those files in /webpack/assets/javascripts
/app/assets/stylesheets/application.css.scssReference sass files in /webpack/assets/stylesheets
/node_modulesWhere npm puts the loaded packages
/webpackAll webpack files under this directory except for node_modules and package.json
/webpack/assets/imagesSymlink to /app/assets/images. Needed so that Webpack Dev Server can see same images referenced by Rails sprockets
/webpack/assets/javascriptsjavascripts are packaged into rails-bundle.js as well as used by the Webpack Dev Server
/webpack/assets/stylesheetsstylesheets are used by the asset pipeline (referenced directly by /app/assets/stylesheets/application.css.scss) as well as used by the Webpack Dev Server
/webpack/index.htmlthe default page loaded when testing the Webpack Dev Server
/webpack/scriptsfiles used by only the Rails or Webpack Dev Server environments
/webpack/server.jsserver.js is the code to configure the Webpack Dev

webpack.config

To reiterate, we needed Webpack for the following reasons:

  1. To enable the use of JS "modules", using either the either the AMD (aka require.js) or CommonJs module syntax.
  2. To convert JSX files (ES6 and JSX syntax) into JS files. Note, you probably don't want to blindly convert all JS files into ES6, as that may conflict with some imported modules.

This setup with the webpack.config file. We need 2 versions of this file for the two different needs, the Webpack Dev Sever and the Asset Pipeline.


Changing the webpack.config

You maybe wondering if you'll need to edit these webpack config files. Here's some things you'll need to pay attention to.

  1. module.exports.entry: The entry points will determine what webpack places in the bundle. While this may seem similar to the manifest file of /app/assets/javascripts/application.js, it's very different in that you only need to specify the entry points. So if you specify ./assets/javascripts/example (you don't need the file suffix) is the entry point, then you do not and should not specify ./assets/javascripts/CommentBox as an entry point. Once again, dependencies are calculated for Webpack, unlike Rails.

    module.exports = {
     context: __dirname,
     entry: [
       "./assets/javascripts/example"
     ],

  2. module.exports.externals: If you want to load jQuery from a CDN or from the Rails gem, you might specify:

    module.exports.externals: {
      jquery: "var jQuery"
    },
  3. module.exports.module.loaders: This is the place where you can expose jQuery from your Webpack rails-bundle.js so that the rest of the non-module using parts of Rails can use jQuery.

    module.exports.module: {
      loaders: [
        // Next 2 lines expose jQuery and $ to any JavaScript files loaded after rails-bundle.js
        //   in the Rails Asset Pipeline. Thus, load this one prior.
        { test: require.resolve("jquery"), loader: "expose?jQuery" },
        { test: require.resolve("jquery"), loader: "expose?$" }
      ]
    }

That being said, it's well worth familiarizing yourself with the documentation for webpack. The gitter room for webpack is also helpful.

Webpack Dev Server and Hot Module Replacement

While waiting for webpack to create the rails-bundle.js file and then reloading the Rails page is not terribly time consuming, there's no comparison to using the Webpack Dev Server with Hot Module Replacement which loads new JavaScript and Sass code without modifying the existing client side data if possible. If you thought Live Reload was cool, you'll love this feature. To quote the documentation:

The webpack-dev-server is a little node.js express server, which uses the webpack-dev-middleware to serve a webpack bundle. It also has a little runtime which is connected to the server via socket.io. The server emit information about the compilation state to the client, which reacts on that events.

It serves static assets from the current directory. If the file isn’t found a empty HTML page is generated whichs references the corresponding javascript file.

In a nutshell, the file /webpack/server.js is the http server utilizing the Webpack Dev Server API:

  1. /webpack/webpack.hot.config.js configures the webpack assets.
  2. Has a couple of json responses.
  3. Configures "hot" to be true to enable hot module replacement.

JavaScripts

Webpack handles the following aspects of the /webpack/assets/javascripts directory:

  1. Preparing a "bundle" of the JavaScript files needed by either Rails or the Webpack Dev Server. This includes running the files through the jsx and es6 loaders which transpile the jsx and es6 syntax into standard javascripts. Heres' the configuration that does the loading:

    module.loaders = [{ test: /\.jsx$/, loaders: ["react-hot", "es6", "jsx?harmony"] }]
  2. Webpack also normalizes whichever module loading syntax you choose (RequireJs, CommonJs, or ES6).

Sass and images

For the Webpack Dev Server build (not the Rails build that creates rails-bundle.js), Sass is loaded via webpack for 2 reasons:

  1. Webpack takes care of running the sass compiler.
  2. Any changes made to sass or css files are loaded by the hot module loader into the browser.

The file /webpack/scripts/webpack_only.jsx contains this:

require("test-stylesheet.css");
require("test-sass-stylesheet.scss");

This "requires" stylesheet information just like a "require" of JavaScript. Thus, /webpack/index.html does not reference any output from the Sass generation. This file, webpack_only.jsx is referenced only in the webpack.hot.config.js file as an "entry point", which means that it gets loaded explicitly in the created bundle file.

Images were a bit tricky, as during deployment, you want your images fingerprinted for caching purposes. This is nearly invisible to users of newer versions of the Rails, thanks to the fingerprinting feature of the Rails asset pipeline. While webpack can also fingerprint images, that's not needed as we're not depending on this feature of webpack for our Rails deployments. So we just need the Webpack Dev Server to access the same image files. I.e., we need to be able to use a syntax in the scss files to reference images that works for both the Webpack Dev Server as well as the Rails asset pipeline.

For example, here's a snippet of sass code to load the twitter_64.png image from the top level of the /app/assets/images directory. This needs to work for both the Asset Pipeline as well as the Webpack Dev Server.

.twitter-image {
  background-image: image-url('twitter_64.png');
}

The problem of how to get the same images into the stylesheets of both Rails and Express server versions was solved by using a symlink, which git will conveniently store.

  1. /webpack/assets/images is a symlink for the /app/assets/images directory.

  2. The image-url sass helper takes care of mapping the correct directories for images. The image directory for the webpack server is configured by this line:

    module.loaders = [{ test: /.scss$/, loader: “style!css!sass?outputStyle=expanded&imagePath=/assets/images”}]

    The sass gem for rails handles the mapping for the Asset Pipeline.

  3. The symlink was necessary, as the Webpack Dev Server could not reference files above the root directory.

This way the images are signed correctly for production builds via the Rails asset pipeline, and the images work fine for the Webpack Dev Server.

Sourcemaps

When debugging JavaScript using the Rails app, I did not want to have to scroll through a giant rails-bundle.js of all js assets. Sourcemap support in Webpack addressed that issue. At first I tried to use plain sourcemaps (separate file rather than integrated), but that resulted in an off by one error. Furthermore, I had to do some fancy work to move the created file to the correct spot of /public/assets. Also note that building the sourcemap file when deploying to Heroku breaks the Heroku build. Both of these cases are handled at the bottom of the file webpack.rails.config.js.

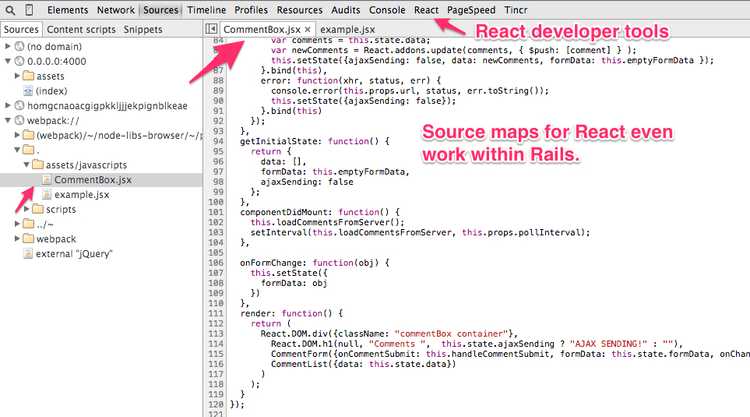

This is what sourcemaps looks like in Chrome


Heroku Deployment

There are several things needed to get builds working on Heroku.

  1. It's critical that package.json has all tools required by the Heroku build in dependencies and not devDependencies as Heroku only installs those modules in dependencies. You should use devDependencies for tools that only your local Webpack Dev Server uses.

  2. Clean up your build cache:

    heroku plugins:install https://github.com/heroku/heroku-repo.git
    heroku repo:purge_cache -a <my-app>
  3. Be sure to run npm-shrinkwrap after ANY changes to dependencies inside of package.json.

  4. I needed to configure the compile_environment task to create the rails-bundle.js via Webpack using the file /lib/tasks/assets.rake.

  5. Heroku needs both the node and ruby environments. In order to deploy to heroku, you’ll need run this command once to set a custom buildpack:

heroku config:add BUILDPACK_URL=https://github.com/ddollar/heroku-buildpack-multi.git

This runs the two buildpacks in the /.buildpacks file courtesy of the ddollar/heroku-buildpack-multi buildpack.

Why node_modules and package.json are not in the webpack directory?

While it would be tidier to put node_modules and package.json into the /webpack directory, the problem is that this would require a custom buildpack for installing the node_modules on Heroku.

Why Have a Second Assets Directory Under Webpack?

At first, I had Webpack reference the JSX files from the /app/assets/javascripts directory. However, I wanted to be able to use a WebStorm project just based on the JavaScript code. I'd either have to put the WebStorm project at the root level, thus including all the Ruby directories, or I could use a sym link to the javascripts directory. You NEVER want run two different JetBrains products simultaneously on the same directory, so that ruled out using WebStorm at the top of my Rails app. The symlink approach seemed to work, but that got confusing especially given I'd sometimes open the JSX files in Emacs.

The approach of putting the webpack bundled assets under the /webpack/assets directory worked out well for me. It seems natural that Webpack bundles those assets and puts them into the rails-bundle.js file in the /app/assets/javascripts directory.

For the same reasons, I'm keeping style sheets referenced by Webpack under the /webpack directory. Note, I'm using Webpack to load stylesheets, as that allows the style sheet changes to be hot loaded into the browser! If you edit any of the files in the /webpack/assets/stylesheets directory, you'll see the browser update with the style changes almost immediately after you hit save. The standard Rails file /app/assets/stylesheets/application.css.scss references the file style sheets in /webpack/assets/stylesheets.

How to Add a NPM (JavaScript) module dependency?

This is a bit like modifying your Gemfile with a new gem dependency.

  1. Modify your /package.json file with the appropriate line for the desired package inside the "dependencies" section. You'll want to specify an exact version, as that's the recommendation in the Node community. Just google "npm <whatever module>" and you'll get a link to the npm page for that module where you can see the version. For example, to add marked as a dependency, I added this line to package.json.

    "marked": "^0.3.2",
  2. Include the appropriate line to require the module. For example, to include the marked library:

    var marked = require("marked");

How to update Node Dependencies

When you're ready to take the time to ensure that upgrading your packages will not break your code, you'll want to take the following steps. Refer to npm-check-updates and npm-shrinkwrap.

cd <top level of your app>
rm -rf node_modules
npm install -g npm-check-updates
npm-check-updates -u
npm install
npm-shrinkwrap

Rapid Client Development

Congratulations! You've gotten through what I believe is the secret sauce for rapid client side JavaScript development. Once you get the setup, per the above steps, the flow goes like this:

  1. Run the Webpack Dev Server on port 3000

    cd webpack && node server.js
  2. Point your browser at http://0.0.0.0:3000.

  3. Start another shell and run

    foreman start -f Procfile.dev
  4. Point your browser at http://0.0.0.0:4000 and verify you can see the usage of the rails-bundle.js file.

  5. Update the jsx and scss files under /webpack/assets and see the browser at port 3000 update when files are saved.

  6. Start with static data in the JSX creation, and then move to having the server.js file vend JSON to the client.

  7. Once that works, have the rails server create the JSON.

  8. Deploy to Heroku!

  9. Prosper!

Links

  1. Github repo for this code: justin808/react-webpack-rails-tutorial
  2. Live version of this code on Heroku: http://react-webpack-rails-tutorial.herokuapp.com/
  3. Storing or Excluding Node Modules in Rails Git Repositories?
  4. Pete Hunt's introductory guide to getting started with Webpack.

Acknowledgments

This work was inspired by a project for my client, Madrone Inc.. The founder clearly desired a UI that did not fit into the standard request/response HTML of Rails. If you want to work with me on this project, or other related projects, please email me.

I'd like to thank the following reviewers: Ed Roman, @ed_roman, Greg Lazarev, @gylaz, Geoff Evason, @gevason, Jose Luis Torres, @joseluis_torres, Mike Kazmier, @Kaztopia, John Lynch, @johnrlynch, Jonathan Soeder, @soederpop, and Ben Ward, @mauilabs.

Comments, suggestions, and corrections are appreciated! I hope to get a lively discussion the use of WebPack and Rails in my new discussion forum at http://forum.shakacode.com.

Thanks to Hack Hands for supporting the development of this content. You can find a copy of this article in their blog.

Updates

  1. 2014-09-22: Updated the Heroku Deployment section, including how dependencies vs. devDependencies in package.json.

Closing Remark

Could your team use some help with topics like this and others covered by ShakaCode's blog and open source? We specialize in optimizing Rails applications, especially those with advanced JavaScript frontends, like React. We can also help you optimize your CI processes with lower costs and faster, more reliable tests. Scraping web data and lowering infrastructure costs are two other areas of specialization. Feel free to reach out to ShakaCode's CEO, Justin Gordon, at [email protected] or schedule an appointment to discuss how ShakaCode can help your project!
Are you looking for a software development partner who can
develop modern, high-performance web apps and sites?
See what we've doneArrow right
